Aluminum Alloy Solar Mid Clamp for Framed Solar Panel Mounting Installation

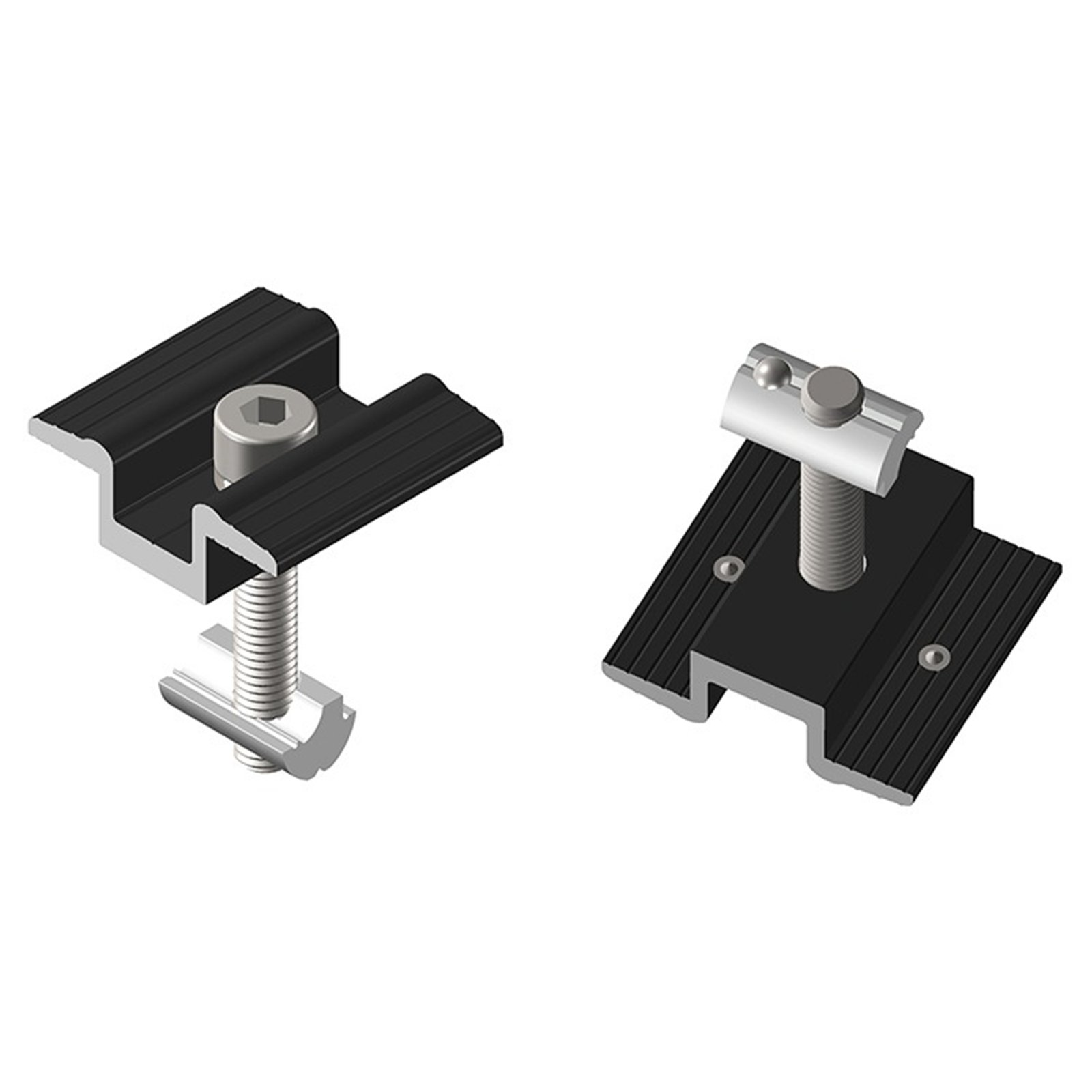

Mid Clamp for Solar Panel Mounting Rails
A rail-mounted mid clamp for securing adjacent framed PV modules to aluminum solar mounting rails. Available in different module thickness configurations, with OEM/ODM options for specific module and rail interfaces.
Application
Framed PV modules
Material
Aluminum alloy
Module Thickness
30-50mm
Customization
OEM / ODM available
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Thickness | 30-50 mm |
| Clamp Material | 6005-T5/6005-T6 |
| Alternative Materials | 6061 / 6063-T6 |
| Fastener | US304/SUS410 Stainless Steel |
| Finish | Anodized / Black electrophoresis |
| Length Options | 40 / 50 mm |
| Custom Length | Available |
| Customization | OEM / ODM |
| Surface Finish | Natural Silver, Black Anodized |
| Length Options | 40/50mm or Customized |
| Height Customization | Available |
Technical Note: Final product configuration should be confirmed according to the module, rail profile, fastening system, and project requirements.
Product Dimensions

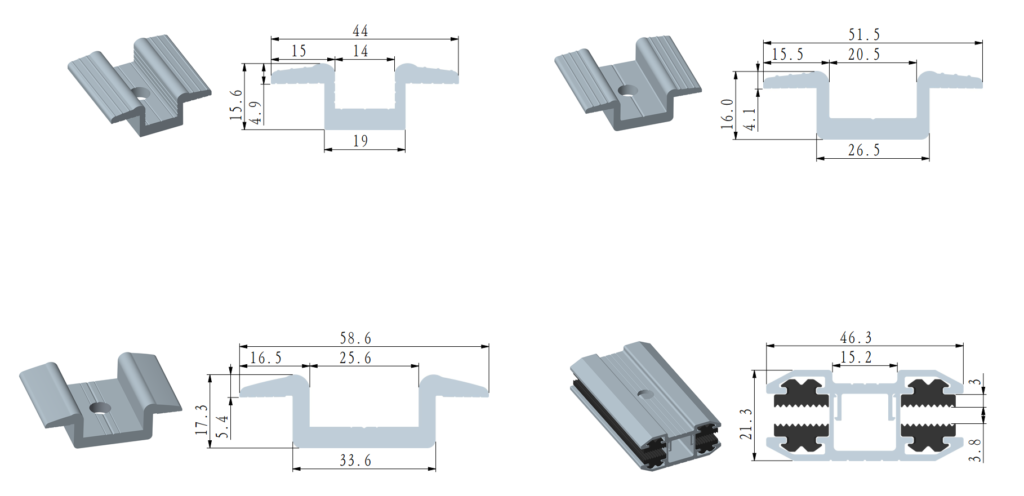

Customized Based. The technical drawing defines the key dimensions and interfaces required for product selection, installation, and system integration.
Technical Resources
OEM / ODM Customization
Standard mounting components do not always fit every PV module, rail system, or installation requirement. We can develop or supply customized mounting components according to your module, rail, dimensional, material, and branding requirements.
Material & Finish
Material, surface treatment, protective components, and other specified requirements.
Branding & Packaging
Logo, product labeling, private-label packaging, customized identification.
Geometry &Fastening
Clamp dimensions, geometry, Bolt, T-bolt, nut, and fastening configuration
Production & Quality
We focus on dimensional consistency, interface compatibility, and repeatable production for PV mounting components.
Material Verification
Specified materials and components are checked against the confirmed product requirements.
Dimensional Inspection
Dimensions and interfaces are inspected according to the approved specification.
Surface Inspection
Surface finish and visible product condition are checked before shipment.
Component Inspection
Fasteners, inserts, and other supplied components are checked according to the confirmed configuration.
Packaging Inspection
Product quantity, identification, and packaging are checked before shipment.
Applications

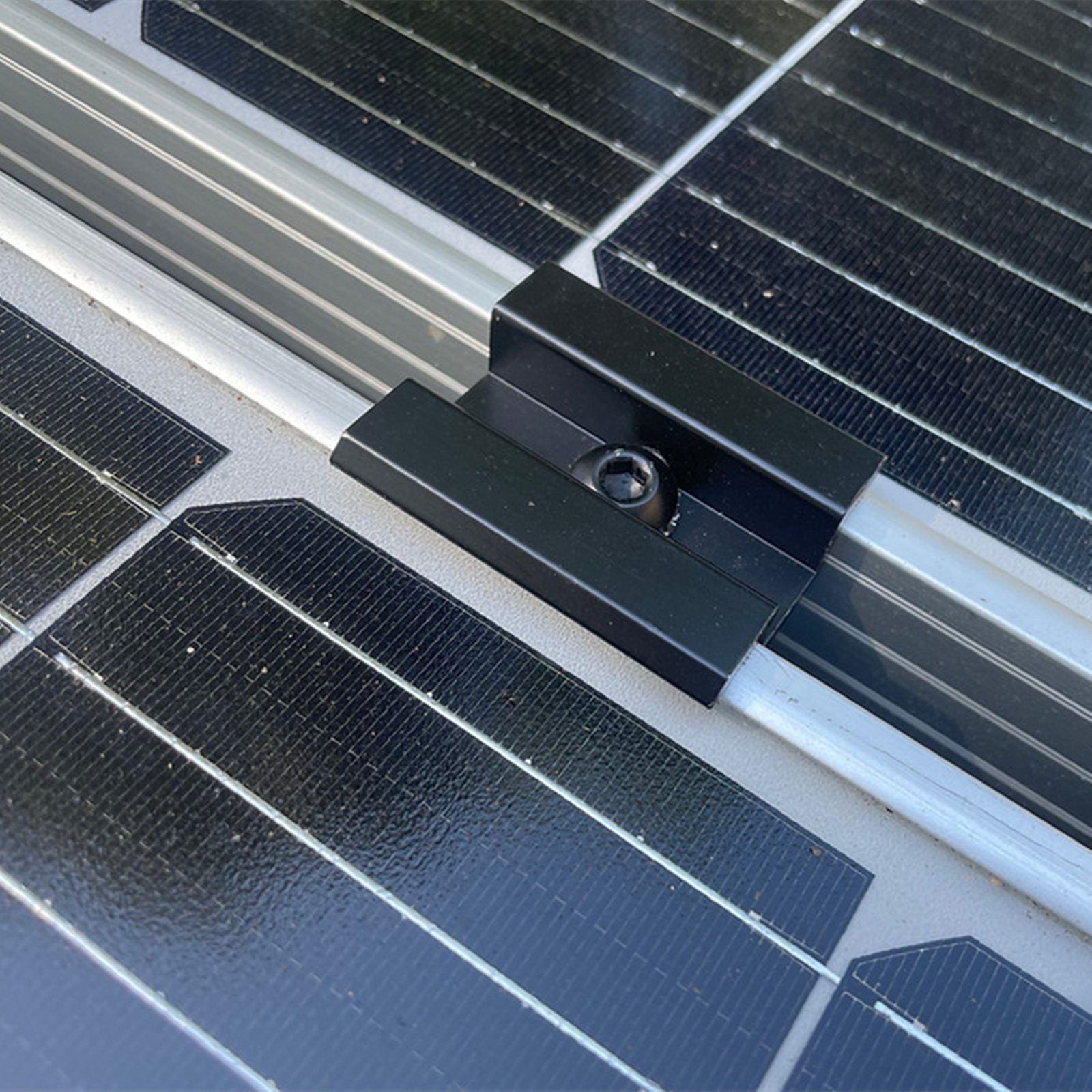

Suitable for PV mounting applications including: Rooftop · Commercial · Ground Mount · Carport
Frequently Asked Questions
What is a solar panel mid clamp?
A solar panel mid clamp secures the adjacent edges of two framed PV modules to a mounting rail. It is positioned between modules and forms part of the module-to-rail connection in a rail-mounted PV system.
What module thicknesses are compatible with this mid clamp?
This depends on the specific clamp configuration. The applicable module frame height / thickness for this product is 30mm/35mm or customized. For other module dimensions, custom configurations may be available.
How do I know if this mid clamp fits my mounting rail?
Compatibility depends on the rail profile, rail nut, fastener, and clamp interface. If you are unsure, provide the rail profile or dimensions together with the module frame dimensions for compatibility review.
Does the mid clamp include the bolt and rail nut?
The supplied components depend on the selected configuration. This product is supplied with mid clamp, nut, screw. Custom fastening configurations can be discussed for OEM/ODM projects.
Can you customize a mid clamp for a specific solar module?
Yes. Customization can include the clamp geometry, module frame interface, dimensions, rail interface, fastener configuration, material, finish, branding, and packaging, subject to engineering review.
Can you develop a mid clamp from our existing sample or drawing?
Yes. An existing clamp, technical drawing, module specification, or mounting rail profile can be used as the basis for an OEM/ODM configuration review.
Need a Standard or Custom Mid Clamp?
Send us your module details, rail profile, drawing, existing component, or specification.
